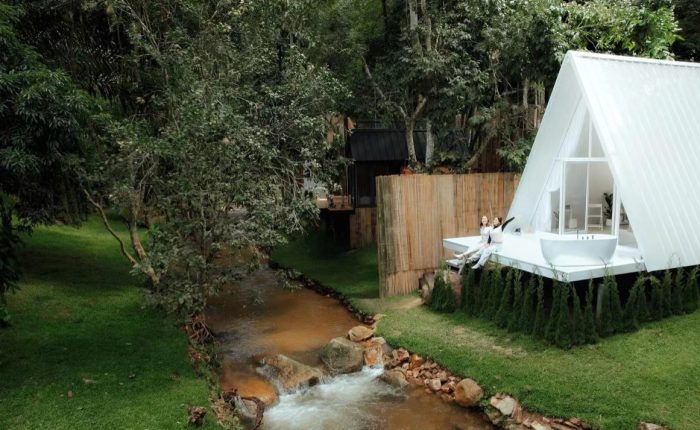

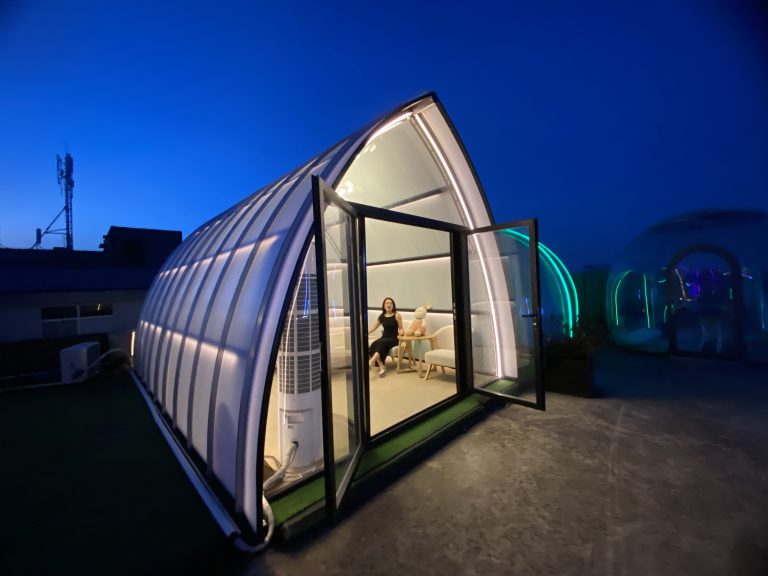

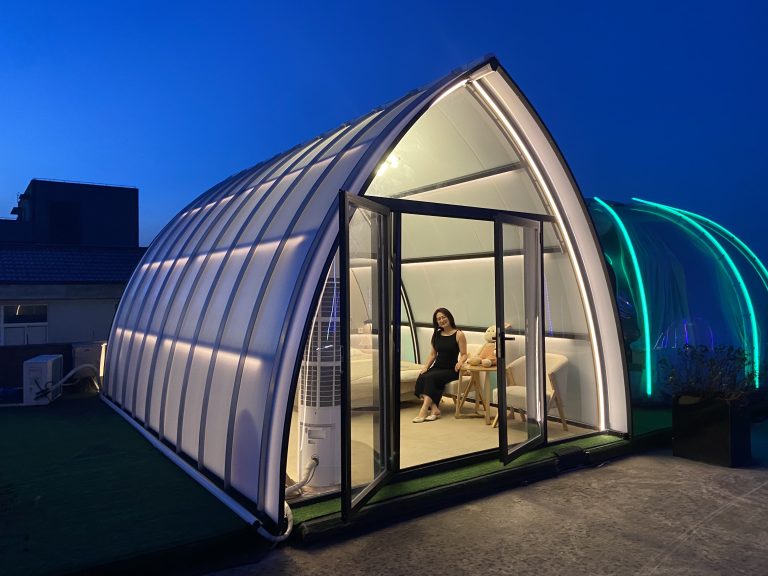

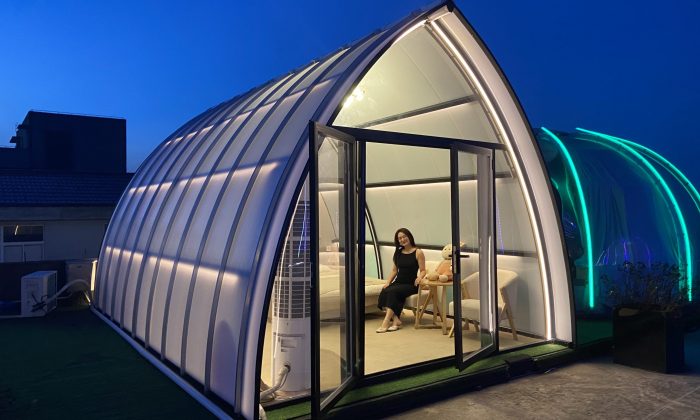

It is mainly suitable for courtyards, rooftop terraces, lakeside areas, parks, mountain slopes, desert, grasslands, forests, and commercial plazas.
We care about all the details of our customers’ use, and in order to extend the service life of our products, all of our materials and accessories are repeatedly tested in laboratory simulation environments. Thickened aviation aluminum profiles; Our Domes’ sheet materials are all from Bayer in Germany, making JC dome a sturdy house instead of a tent. We hope you can use it more comfortably and for a longer period of time.
Our cases come from all over the world, involving numerous homestay projects, catering projects, camping projects, commercial projects, families, and more. As a commercial use, it enables the rapid completion of project construction without the need for any building permits. Realize high returns with low investment. The vast majority of projects can recover their costs within three months.
Under normal conditions, JC dome house has a service life of up to 15-20 years. We also provide a 10-year warranty and offer free replacement in case of cracking, yellowing, or other issues.

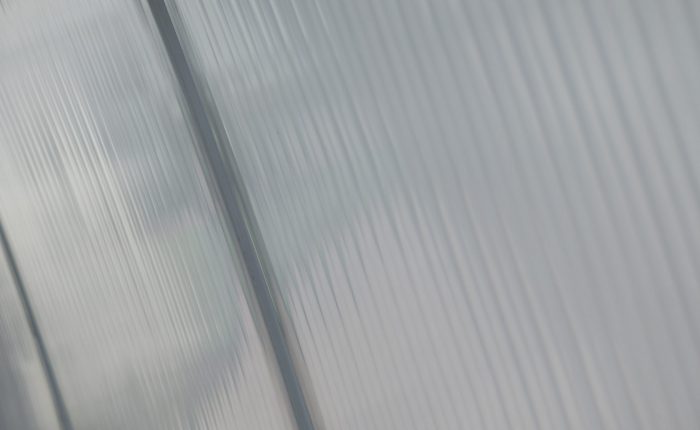

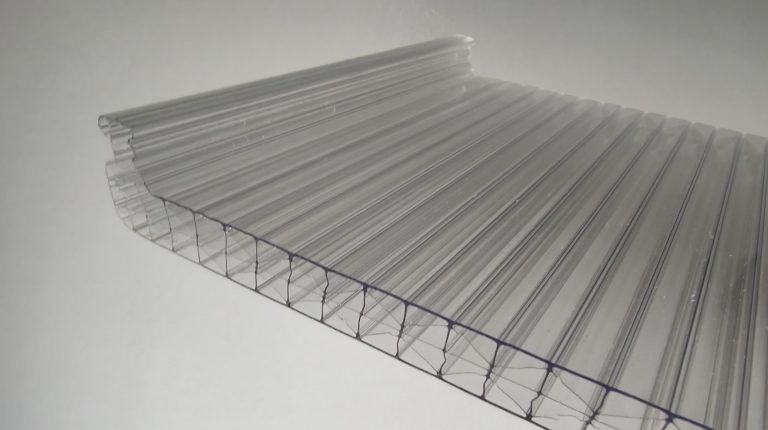

The raw material of food-grade polycarbonate sheet is safe, has good impact resistance, is difficult to damage, and has an extremely long outdoor service life.

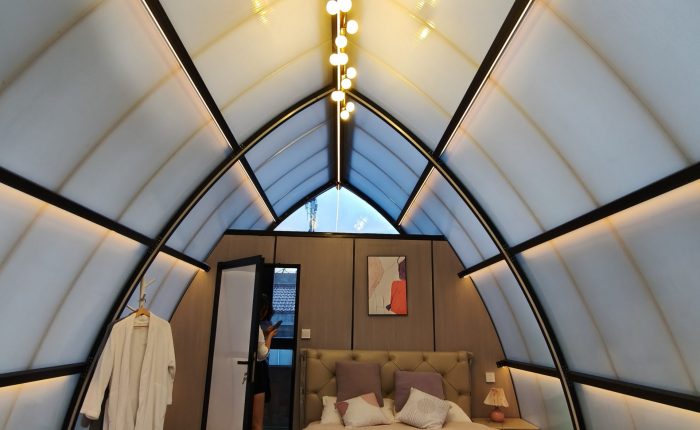

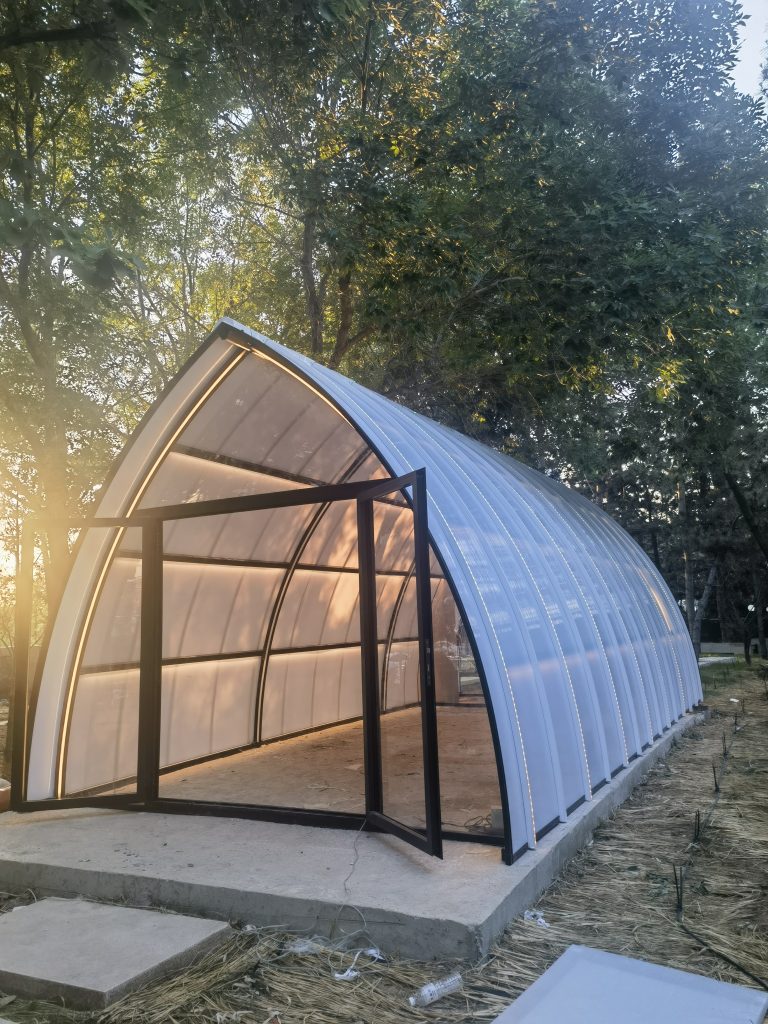

The overall design of the boat house is made of hollow panels, which have excellent insulation effect and can be applied to almost all climate types.
It can achieve 26 decibels of sound insulation, ensuring indoor comfort and quietness. Even when used in outdoor KTV private rooms, it can still achieve good sound insulation effect.
B1 level fire-resistant material, capable of self extinguishing within 15 seconds of ignition, with low smoke density, effectively reducing fire hazards.

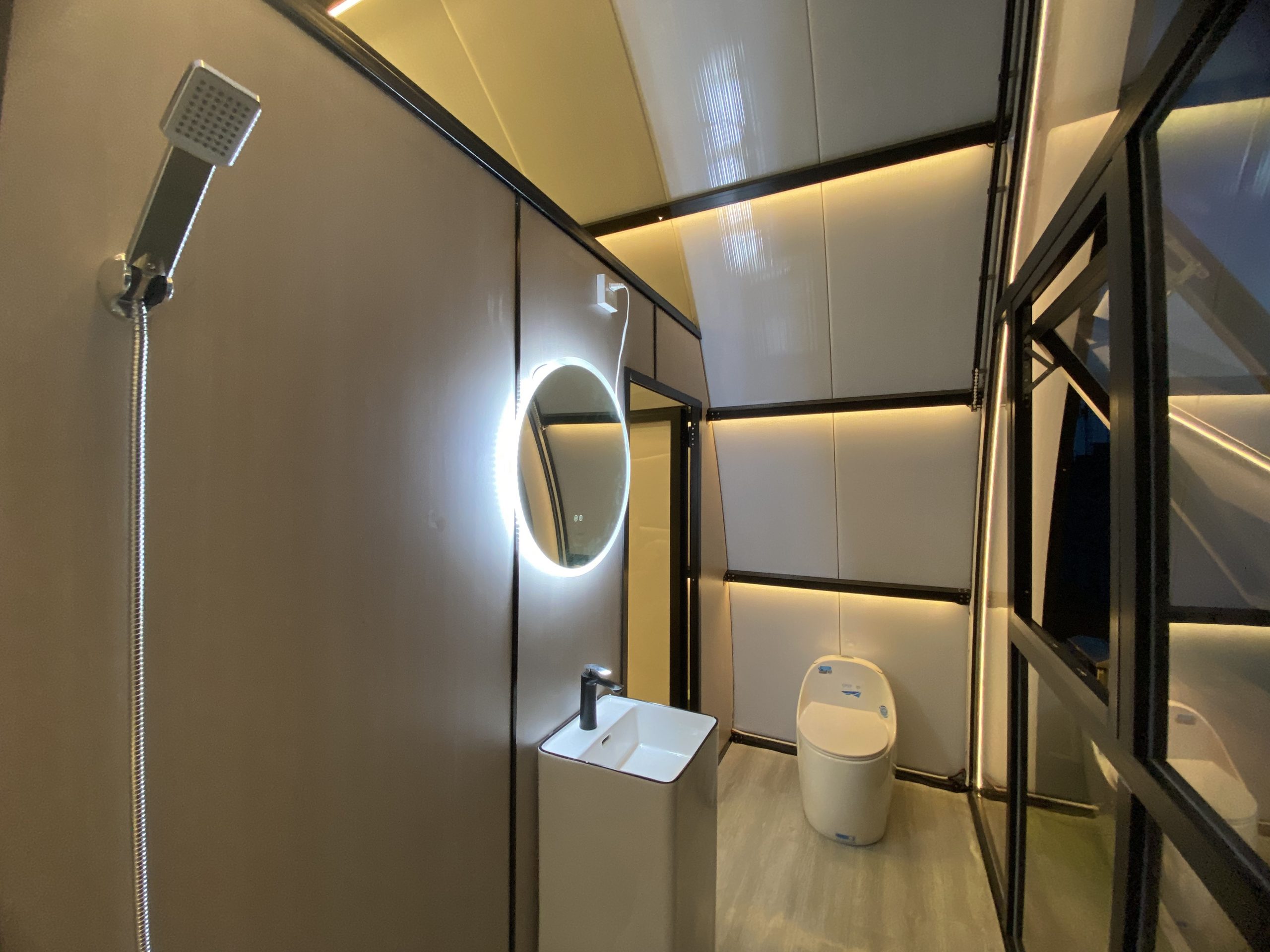

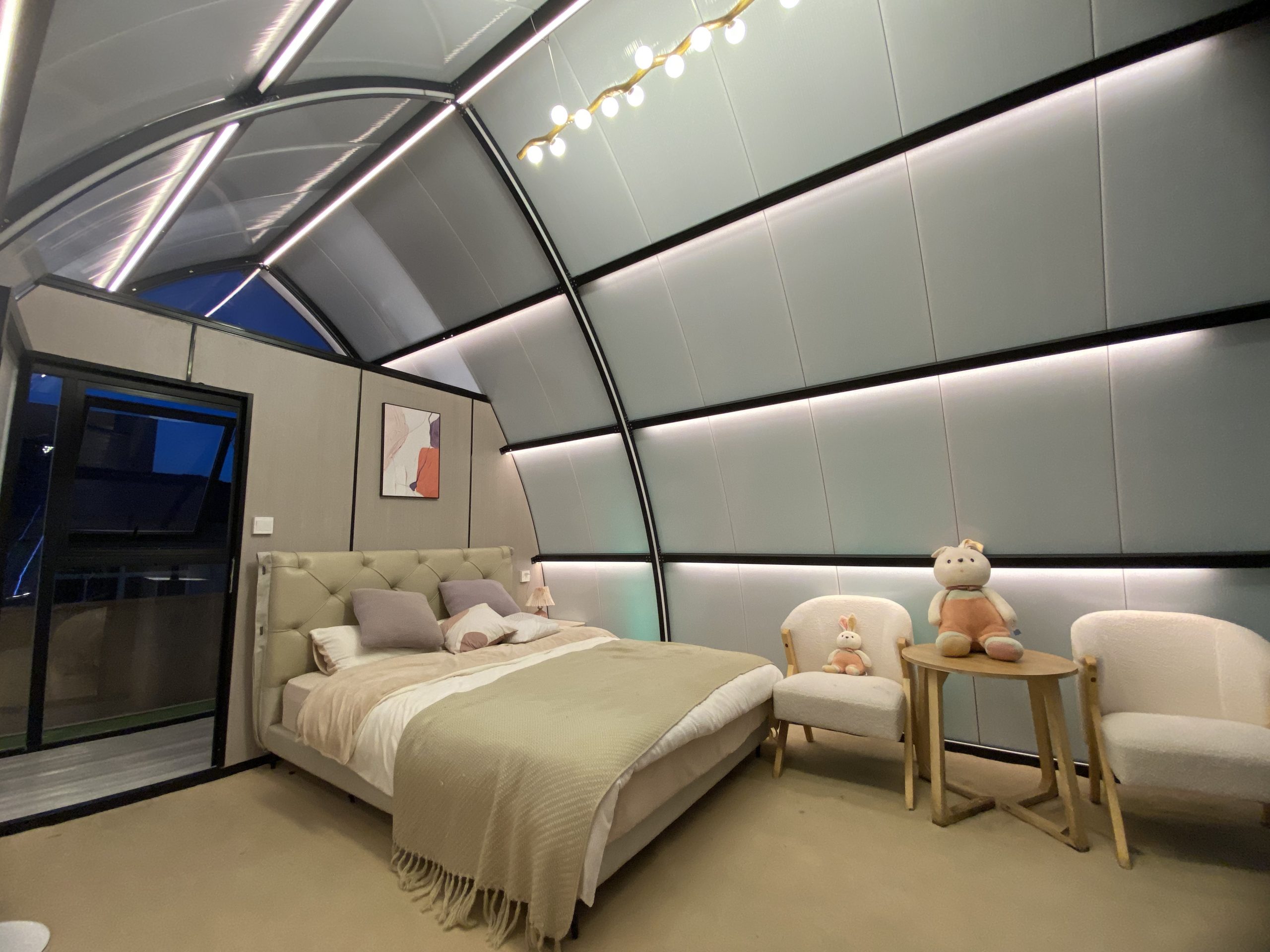

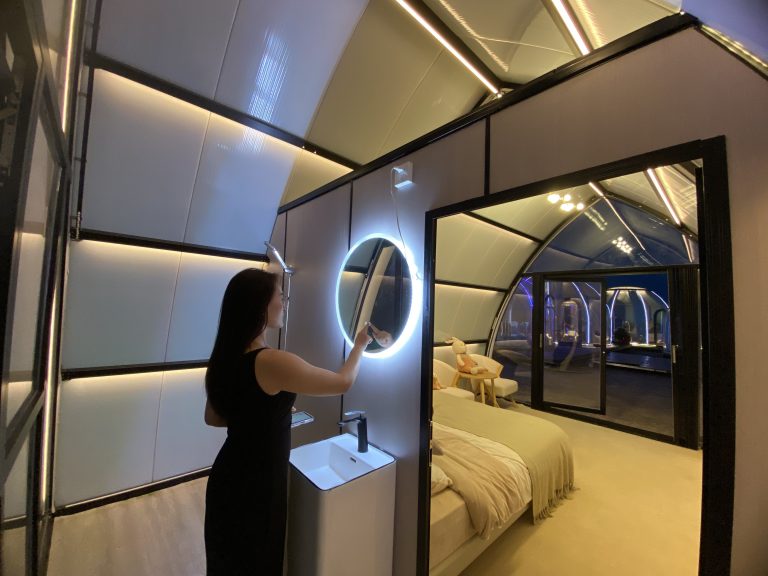

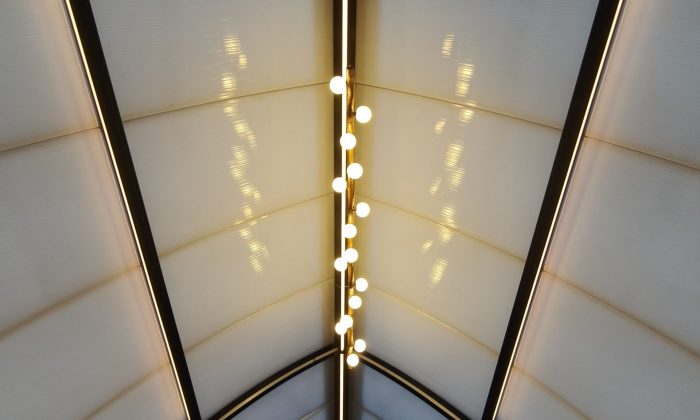

All indoor and outdoor are equipped with LED light strips, and there is no need for decoration indoors. The exterior lighting effect is warm and romantic.

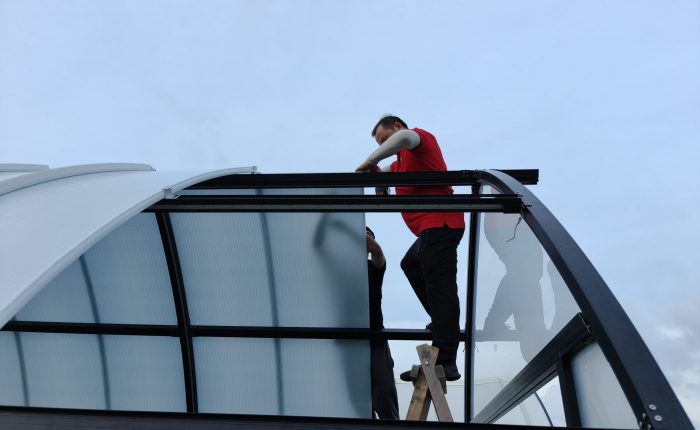

Installation and disassembly are more convenient, modular assembly can be completed in 2-3 hours, and on-site installation services can be provided throughout the country. It is also easy to maintain and can be easily sprayed with a high-pressure water gun.
| category | 3.68m*3.m | 6m*3.68m | 7.2m*3.68m | ||||||||
| External dimensions | 3.68*3.6*3.6 Length*width*height | 6*3.68*3.6 Length*width*height | 7.2*3.68*3.6 Length*width*height | ||||||||
| carpet area | 10.6㎡ | 19.1㎡ | 23.4㎡ | ||||||||
| Product weight | 400kg | 640kg | 700kg | ||||||||
| Product Material | polycarbonate（PC ）+aviation aluminum | ||||||||||
| Application recommendation | 1 bedroom 2-6peoples Restaurant | 1room & 1bathroom 10 peoples Restaurant | 1room & 1bathroom 12peoples Restaurant | ||||||||
| Basic configuration | PC transparent wall panel | 14 petals | 22 petals | 26 petals | |||||||
| Roof ridge board | 7 pieces | 11 pieces | 13 pieces | ||||||||
| Roof beam | 1 piece | 2 pieces | 2 pieces | ||||||||
| Supporting beam | 4 pieces | 6 pieces | 6 pieces | ||||||||
| Aluminium alloy door | 2 pieces | 1 piece | 1 piece | ||||||||
| Aluminum alloy windows | N/A | 1 piece | 1 piece | ||||||||
| Physical door lock | yes | yes | yes | ||||||||
| Aluminum alloy bottom profile | yes | yes | yes | ||||||||
| Aluminum alloy top profile | yes | yes | yes | ||||||||
| Optional configuration | LED lighting system (iIndoor whole house LED light strip, and outdoor ambient light strip) partition wall curtain floor Screen door Exhaust system Electronic door lock | ||||||||||
| Remarks：The width of the boathouse is fixed, and its length can be infinitely extended. Based on the minimum unit length of 3.6 meters, the length can be increased by 60 centimeters or multiples of 60 centimeters each time, such as 4.2 meters, 4.8 meters, and 5.4 meters. | |||||||||||
